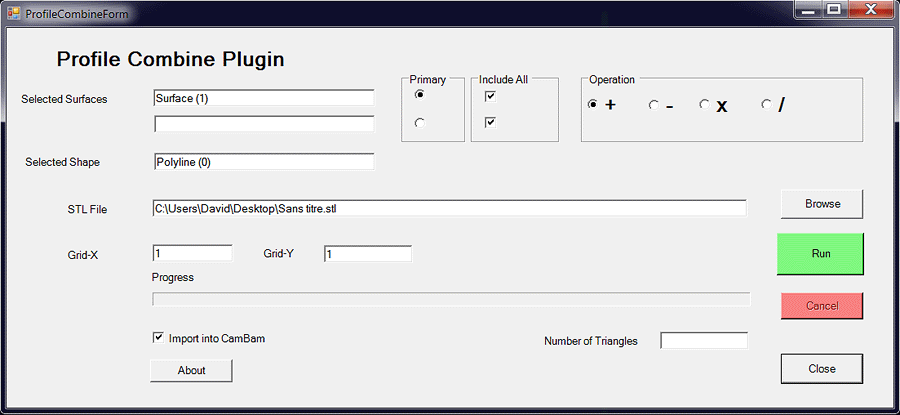

Profile Combine

This plugin is intended create a new Surface object from two Surface objects by applying a mathematical operator on them (+, -, x, /) in the Z-Axis direction. An STL file is also created and saved for the combined surface.

Informations

Creator	GeoffreyGRoy
Last version / Date	V 1.0.3 - date: 29 March 2020
Download plugin	DownLoad for CamBam V1.0
Documentation	Doc PDF (EN)
Requirements	CamBam 1.0 only (32 & 64 bits), Linux version
Forum Link	Profile Combine plugin on the forum
