Area and Perimeter calculation

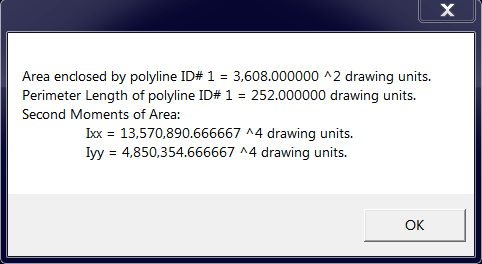

This plugin calculate the enclosed area and the perimeter lenght of an irregular shape.

Informations

Creator	Lloydsp, EddyCurrent, GeoffreyGRoy
Last version / Date	V 1.4.1 - date: 3 January 2022
Download plugin	DownLoad for V0.98 and V1.0
Documentation	The plugin appears in the Tools menu as Area
Requirements	CamBam 0.9.8 P, 1.0, Linux version
Forum Link	Area calculation plugin on the forum
