PolyRadius

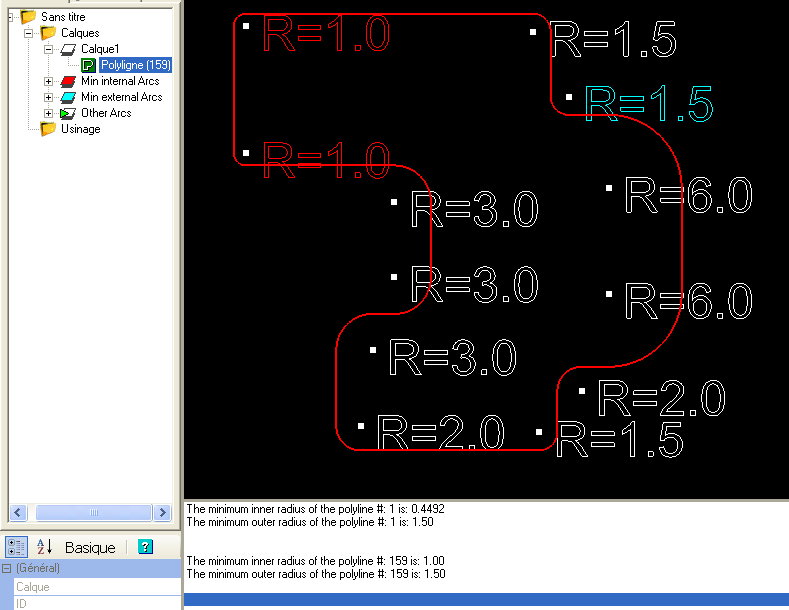

This plugin draws a point for each arc centers in the selected polylines. The radius value of each arc is also written. The texts for min and max radii are also stored in différents layers and a summary is written in the log window.

Informations

Creator	dh42, EddyCurrent
Last version / Date	V 1.2 - date: 13 April 2015
Download plugin	DownLoad
Documentation
Requirements	CamBam 0.9.8 P, Linux version
Forum Link	Polyradius plugin on the forum
