ShowExtrema

This plugin display the selected object or objects extrema in the Status Bar.

Informations

Creator	EddyCurrent
Last version / Date	V 3.0 - date: 22 December 2020
Download plugin	DownLoad for V0.98 & V1.0

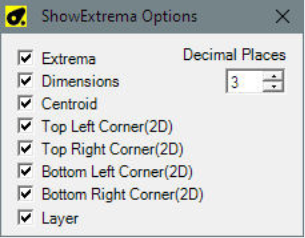

Documentation	When the left mouse button is released, it checks to see if any objects have been selected then displays the extrema. It works ONLY in the main drawing window, if an object is selected in the left hand Tree View it will not work. A form to select various parameters to display can be found in menu item, Plugins->ShowExtremaOptions
Requirements	CamBam 0.9.8 P, 1.0, Linux version
Forum Link	ShowExtrema plugin on the forum
