Semitone

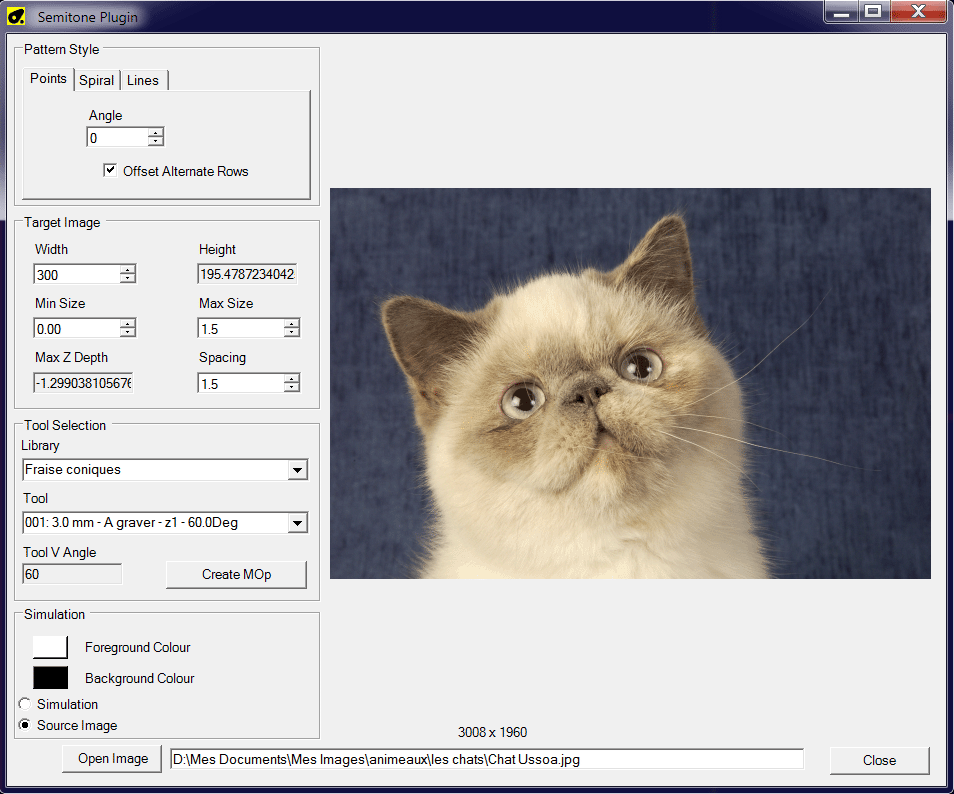

This plugin converts a BitMap image into a halftone for engraving using a V tool and a drilling operation.

The darker the image, the deeper the holes are, and the more their diameter increases because of the taper of the tool.

Pattern style: Points, Spiral and Lines

Informations

Creator	EddyCurrent
Last version / Date	V 3.1 - date: 10 November 2017
Download plugin	DownLoad
Documentation
Requirements	CamBam 0.9.8 P, 1.0, Linux version
Forum Link	Semitone plugin on the forum
