Profile2Helix

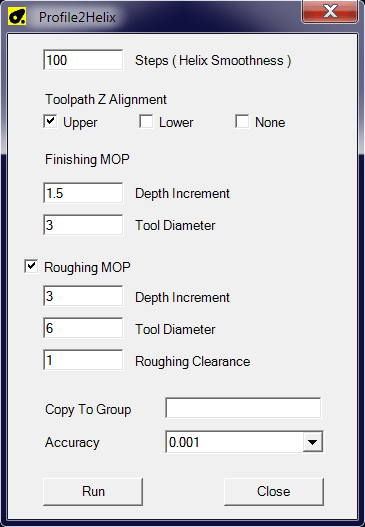

This plugin allow to draw a spiral toolpath from a given profile for both roughing and finishing and with compensated toolpaths for ball noze.

Informations

Creator	EddyCurrent
Last version / Date	V 7.1 - date: 9 August 2017
Download plugin	DownLoad for V0.98 and V1.0
Documentation	Doc Version 6 adds the ability to copy the generated paths to the center of a series of drawing objects belonging to the same group. This presupposes the use of the Groups plugin. The group name must be entered in the Copy to group box (case sensitive) Version 7 adds an option to select accuracy.
Requirements	CamBam 0.9.8 P, V1.0, Linux version
Forum Link	Profil2Helix plugin on the forum
