Snappy

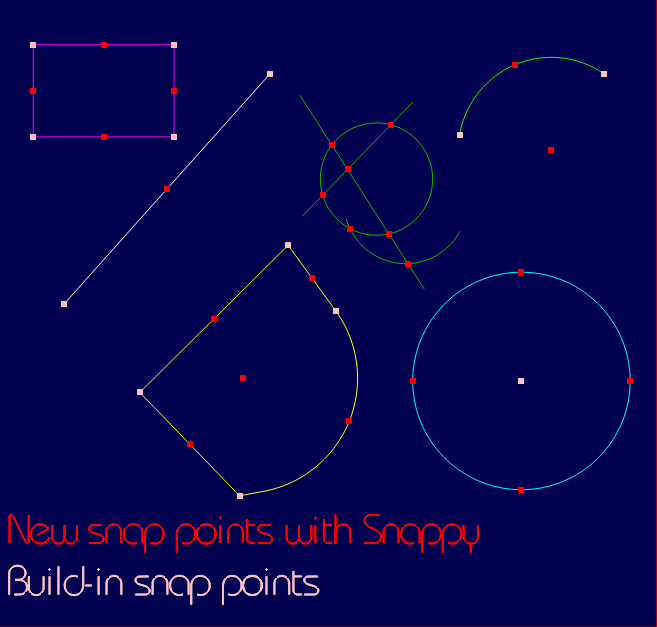

This plugin adds new snap-points in addition to those built-in in CamBam.

The snap points to be used can be enabled/disabled in the Option window (use the Snappy item in Plugin menu)

The snap control window can stay opened during the job.

When in polyline edit mode, Snappy allow to snap on circle and arc circumference.

Informations

Creator	EddyCurrent
Last version / Date	V 8.8 - date: 28 July 2018 V 8.9 - date: 24 February 2025 On version 8.9 cursor changes to a Cross shape when mouse is over a snap point, If you would rather have the cursor hidden, uses version 8.8 instead.
Download plugin	DownLoad V8.8 for V0.98 and V1.0 DownLoad V8.9 for V0.98 and V1.0
Documentation
Requirements	CamBam 0.9.8 P, V1.0, Linux version
Forum Link	Snappy plugin on the forum
