Polygons

The Polygon plugin adds two ways to draw regular polygons in Cambam.

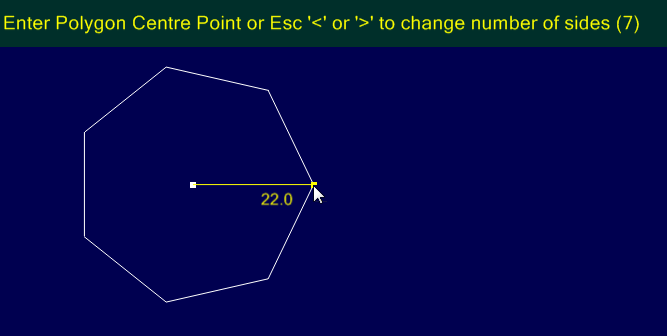

Freehand Polygon

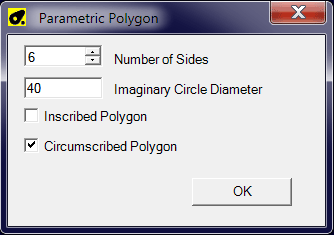

Parametric Polygon

Informations

Creator	Eddycurrent
Last version / Date	V 4.0 - 06 September 2017
Download plugin	Download for CamBam 1.0 (V4) Download for CamBam 0.98 (V3)
Documentation	The plugin adds two buttons to the tool bar. One for Freehand Polygon drawing and the second for Parametric Polygon drawing. The same options are added to the Draw Menu. Commands: <>: Change the number of sides Esc or MMB: Exit
Requirements	CamBam V0.9.8 P, V1.0, Linux version
Forum Link	Polygons plugin on the forum
